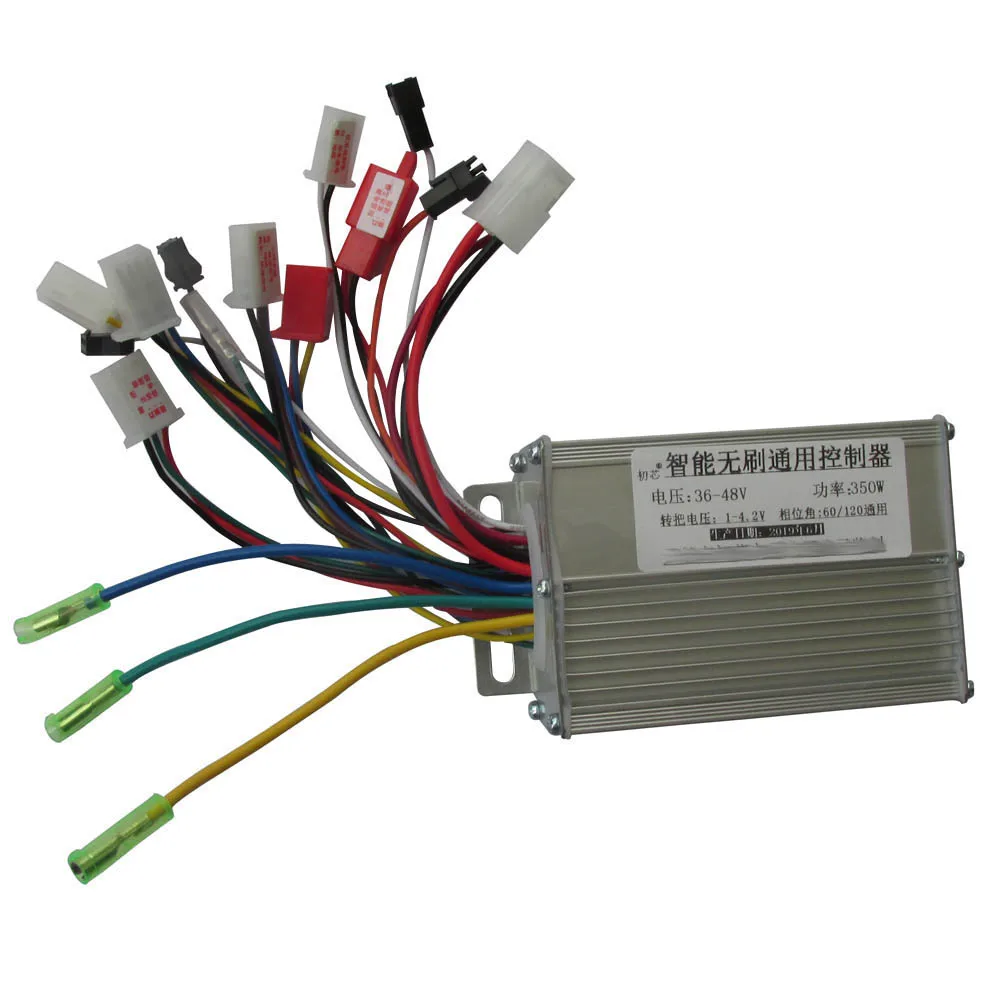

E-Bike-Motor mit 350Watt für bürstenlose DC-Motor 36V/48V

17,50 20,50  (-15%)

8485 vorrätig

-- Sofort bezahlen mit PayPal Express --
Mit PayPal bezahlen
SKU: H0NZU0R24ZFP Categories: , ,

36V-48V 350W controller can work with hall sensor/hall sensorless

Rated Voltage: 36V/48V

Low Voltage : 31V/42V±0.5V

Rated Power: 350W

Limit Current: 17A

1.pointer meter line

2. motor line

3.3-speed line

4.Anti-theft alarm line

5.self-learning line

6.hall line

7.throttle line

8.low brake

9.Anti-theft power line

10.Cruise speed line

11.battery(2 red wires battery +,black battery -)

12.high brake

一.connect the motor line (color to color)

二. connect the battery line(2 red wires :battery + , black:battery-)

三. connect the controller throttle line(color to color)

四. connect the hall line(if motor without hall line, don’t need connect)

五.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again,if wheel forward ,Separate the self-learning line.)

六.other functions can be connected as needed.

Zusätzliche Informationen







Rated power


Use for

electric bicycle/scooter/brushless motor

Only logged in customers who have purchased this product may leave a review.


There are no reviews yet.
