Angebot!

LCD-Display, elektrisches Display für E-Bikes-Scooter, Motor: 350Watt, 24V-48V+36V-60V

78,30 110,30

SKU: OM1TL9LVTHUN
-- Sofort bezahlen mit PayPal Express --
Mit PayPal bezahlen

SHARE:

SKU OM1TL9LVTHUN Categories , ,

Beschreibung

This display adopts fine quality materials, lightweight, rainproof, sturdy and practical. The controller is brushless type, working more fast, silently and sensitive to the state of electric bike.

Features:
This display adopts fine quality materials, lightweight, rainproof, sturdy and practical.
LCD display can clearly show the state and data, backlight enables you to see scree clearly in dim environment, buttons for quick operation, easy to use.
The controller is brushless type, working more fast, silently and sensitive to the state of electric bike.
Easy to install and use, comes with mount for LCD display.
Suitable for electric bicycles, scooters etc.

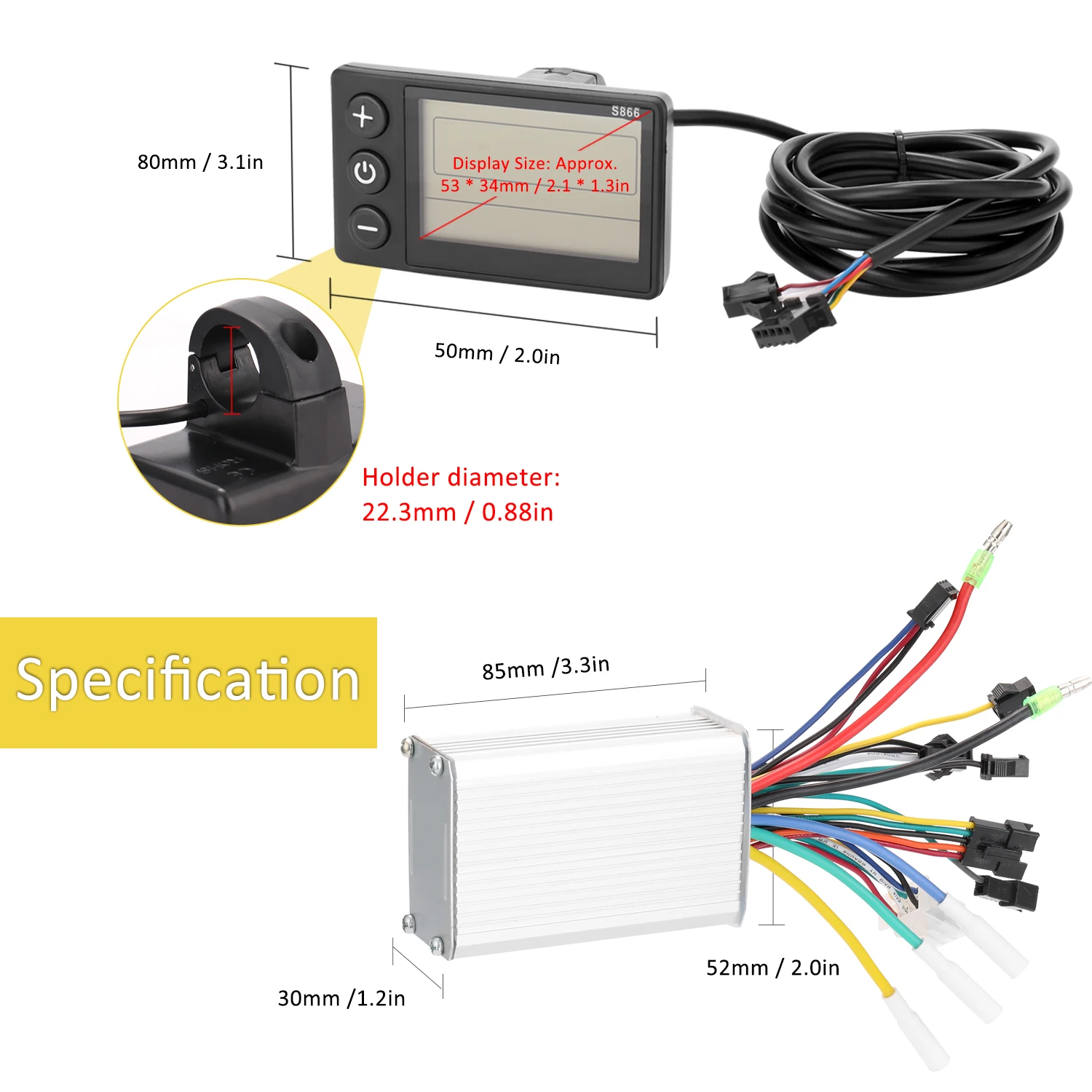

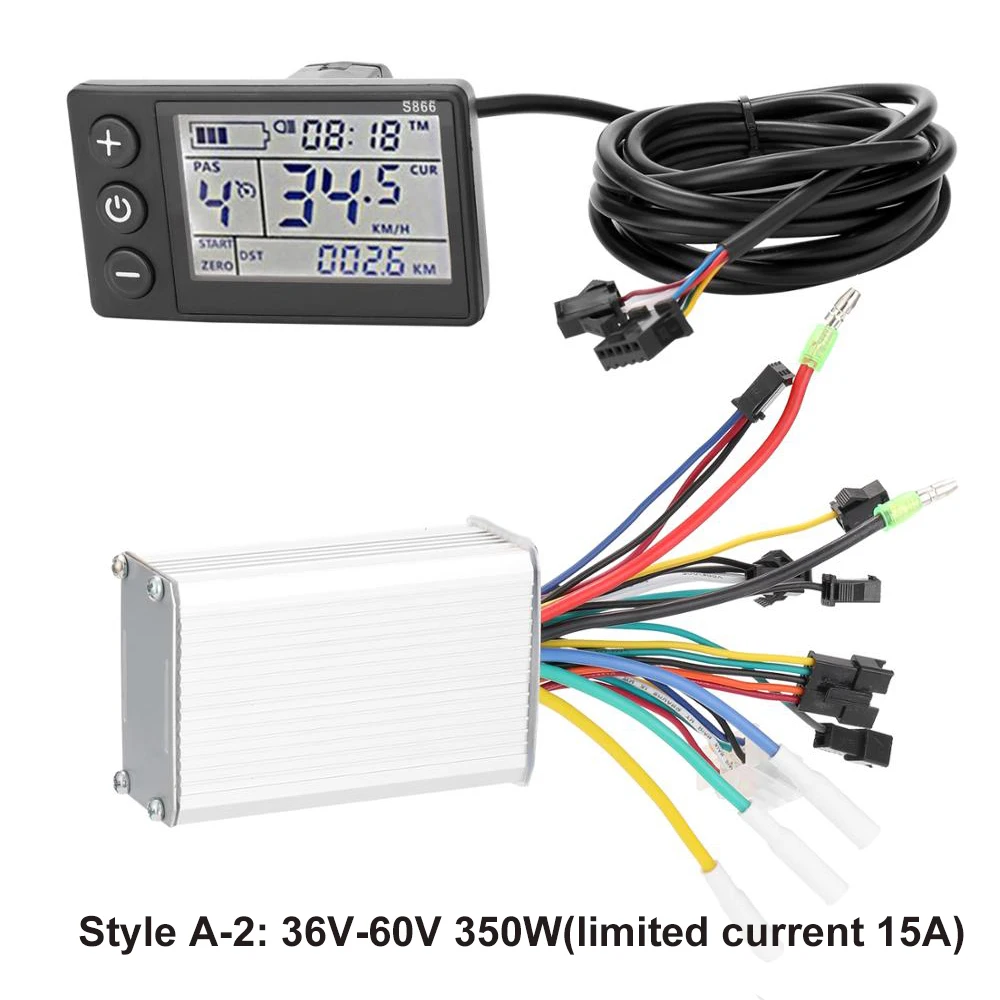

Style A
Material: Plastics + LCD + Metal
LCD Display Model: S866
Controller Model: S6-61
Type: 2 Types(optional)
Type 1: 24V-48V 350W(limited current 15A),
Type 2: 36V-60V 350W(limited current 15A),
Available undervoltage:
Type 1: 19V, 29V, 39V,
Type 2: 29V, 39V, 49V
Waterproof: IP65
Power: 350W
Surface Size: Approx. 80 * 50mm / 3.1 * 2.0in
Display Size: Approx. 53 * 34mm / 2.1 * 1.3in
Controller size: 85 * 52 * 30mm / 3.3 * 2.0 * 1.2in
Package size: 200 * 150 * 100mm / 7.9 * 5.9 * 3.9in
Package weight: 311g / 11.0ounce

Package List:
1 x LCD Display
1 x Controller

Style B
Type: 24V, 36V, 48V (optional)
Material: plastics+metal
Power: 250W / 350W
Speed model :(1:2:3) 33%, 66%, 100%
Controller size: about 86 * 52 * 30mm / 3.4 * 2.0 * 1.2in
Display size: 80 * 42 * 15mm / 3.1 * 1.7 * 0.6in
Item weight: 300g / 10.6ounce
Package size: 200 * 50 * 80mm / 7.9 * 2.0 * 3.1in
Package weight: 308g / 10.9ounce

Note: controller with power switch module (output battery voltage, power can be connected to 50W)

Package List:
1 * LED Display
1 * Controller

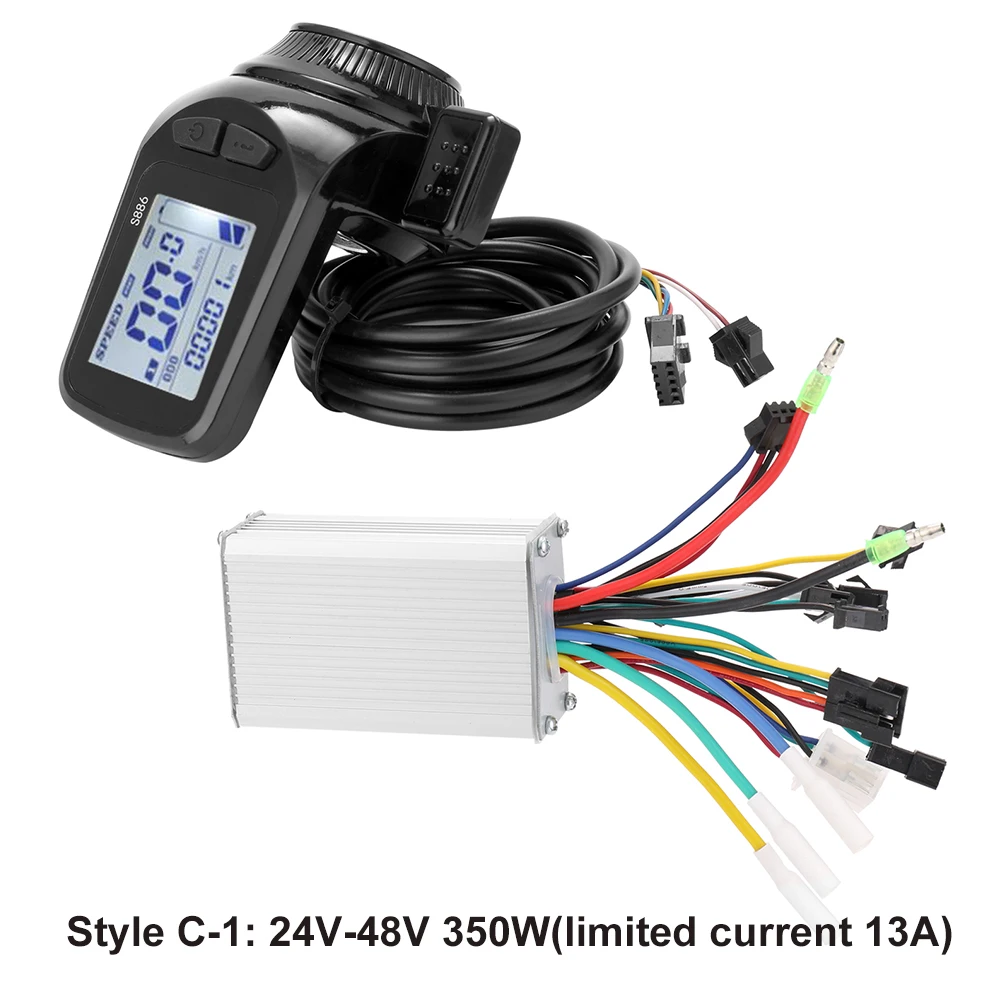

Style C:
Material: Plastics + LCD + Metal
LCD Display Model: S886
Controller Model: S6-41
Type: 3 Types(optional)
Type 1: 24V-48V 350W(limited current 13A),
Type 2: 36V-60V 350W(15A)
Type 3: 24V-48V 350W(limited current 15A),
Available undervoltage:
Type 1: 19V, 29V, 39V,
Type 2: 29V, 39V, 49V
Type 3: 19V, 29V, 39V,
Waterproof: IP54
Power: 350W
Surface Size: Approx. 67 * 43mm / 2.6 * 1.7in
Display Size: Approx. 33 * 27mm / 1.3 * 1.1in
Holder diameter: 22.3mm / 0.88in
Controller size: 85 * 52 * 30mm / 3.3 * 2.0 * 1.2in
Package size: 200 * 150 * 100mm / 7.9 * 5.9 * 3.9in
Package weight: 318g / 11.3ounce

Package List:
1 x LCD Display
1 x Controller






Drop Shipping Service
1. There is no limited stock to fulfill the orders on a daily basis.
2. We use ePacket shipping for most countries, such as United States, Canada, Australia, Russian Federation, Germany, France , Spain , United Kingdom and New Zealand.
3. Priority shipping, fast shipping within 48 hours.
4. No invoice or receipt or promotional materials included.

Zusätzliche Informationen

Origin

CN(Origin)

Type

Controller

Feature 1

Electric Bicycle Scooter E-bike Parts

Feature 2

Electric Bicycle Scooter Brushless Controller Kit

Feature 3

electric scooter bike ebike controller 36v 350w
